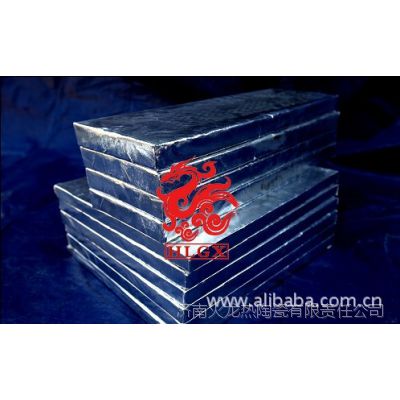

火龙陶瓷纤维复合绝热板Ceramic Fiber Composite Insulation Board

产品描述：Description

济南火龙热陶瓷有限责任公司新开发的陶瓷纤维复合绝热板，选用性能优异的气凝胶隔热材料和具有热屏蔽功能的功能性材料，适配以粘结剂及多种无机元素，以耐高温陶瓷纤维为增强材料，经特殊工艺制备。该绝热材料具有的纤细纳米网孔结构，可以有效降低材料的固态热传导，丰富的纳米孔结构有效抑制气体分子的对流传导，加之功能性材料对热辐射的吸收、反射，可以使材料在600℃时的导热系数在0.030w/m.k左右，与目前常用的绝热保温材料相比绝热效果可提高2-10倍。

Ceramic Fiber Composite Insulation Board is the latest products of Jinan Huolong Thermal Ceramics Co.,Ltd. It is synthesized by special technics, chooseing silicon aerogel of excellent property , functional materials of heat shield, adhesive and a variety of  inorganic elements,in which ceramic fiber is adoted as reinforcing material.This material owns thermal conductivity as low as 0.030 w/m.k at 600℃. Its thin nano-mesh structure can effectively reduce the m heat conduction of solid-state, rich nano-pore structure inhibit the convection conduction of gas molecules, with functional materials absorption, reflection to the thermal radiation .

产品特点：Characteristic

◎优越的隔热性能, 600℃时的导热系数在0.030w/m.k

◎耐高温,长期使用温度可达850℃

◎使用寿命长：

◎经济节能：比常规材料节能10-30%。

◎环保***：在火场中和高温下不释放任何有毒物质，不含石棉（全系列），多溴联苯（阻燃剂）。

◎很好的化学稳定性

◎隔音减震

Super property for thermal insulation: thermal conductivity is 0.015w/m•k(normal temparature)

High temperature resistance: long period service temparute up to 850℃

Long working life

Economic energy-saving: energy-saving 10%--30% than other normal materials.

Environment-friend :release to no toxicity under high temperature including asbestos and pobrominated biphenyls

Good chemical stability

Sound insulation and shock absorption

应用领域：Application

◎航空航天及***行业—超声速飞行器的热防护，装甲车、船舶等的大功率发动机隔热保护

◎钢铁工业—钢包、中间包、电炉、加热炉、退火炉、混铁炉、烧结炉等

◎石油化工业—裂解炉、加热炉、管道等

◎陶瓷业—回转窑、梭式窑、隧道窑等窑体及管道

◎工业炉窑—背衬绝热、炉窑炉衬、炉窑隔热带等系统

◎电力工业—核电绝热系统、蒸汽轮机、锅炉管道系统

◎家用电器—加热器、烤炉、烤箱、电饭煲、微波炉、电磁炉、壁炉等电器仪表的隔热保护

◎建筑、建材、高\低温工程防火隔热等领域

Aerospace industry and defence industry —supersonic aircraft, high power engine etc.

Steel industry—steel ladle, tundish, electric furnace, heating furnace, annealing furnace, mixer furnace, sintering furnace etc.

Petrol chemical industry—cracking furnace, heating furnace, pipeline etc.

Ceramic industry —rotary kiln, Shuttle kiln, tunnel kiln etc.

Industrial furnace—backing, furnace lining, heat-insulation

Power industry—Nuclear Power heat-insulation system, steam turbine, boiler tube etc.

Household appliances—heater, oven, toaster ,electric cooker, microwave oven, induction cooker, incense burner and etc.

Buildings, buildings material, fire protection engineering and etc.

技术指标Technical Index：
